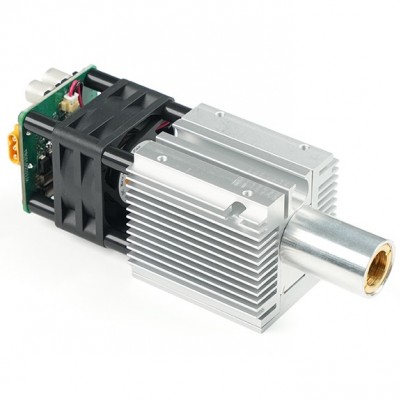

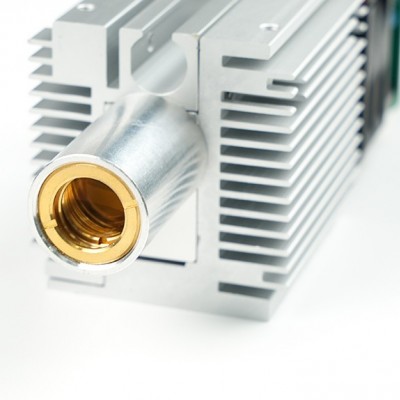

研度蓝光雕刻激光头 450nm10w雕刻激光模组大功率打标激光器切割激光器

输出功率

Output power

10

W

中心波长

Central wavelength

440

447

455

nm

工作距离

Working distance

mm

焦点处光斑大小

Focus spot

6*8

mm

电学性能

Electrical performance

Minimum

Typical

Maximum

Unit

光电转换效率

Photoelectricconversion efficiency

33

%

工作电流

Working current

3.5

A

工作电压

Working voltage

12

V

热学性能

Thermalperformance

Minimum

Typical

Maximum

Unit

工作温度

working temperature

0

50

℃

存储温度

Storage temperature

-40

85

℃

1.激光模组发射的激光有可能对眼睛造成伤害。激光模组工作时，严禁直接注视其端面, 并佩戴防护眼镜.
  The laser light emitted by the laser module is likely to injure persons'eye, so do not directly gaze its end surface and wear appropriate safety glasses to prevent laser light when it is working.

2.器件应当存放或工作于干燥环境，防尘等级达到百万级，已免镜片落入灰尘影响光斑。
  Keep the device working or storing in a dry environment. The anti-dust grade is over one million, in order to prevent dust inside the lens to affect the laser dot shape.

3.在较高温度下工作，会增大阈值电流，降低转换效率，加速器件的老化。
  Working at high temperatures will increase the threshold current, reduce conversion efficiency and speed up the aging of the device.

4.输出功率高于指定参数工作，会加速器件老化。
  When output power is higher than it's specific parameter of operation, it will accelerate the aging of the device.

5.本产品属于静电敏感器件，在人体有良好接地的情况下才可拿取，防静电可采用防静电手镯的方法。
  This laser module is an electrostatic sensitive device. Please make sure ground yourself or wear an antistatic wrist strap before you take it.
